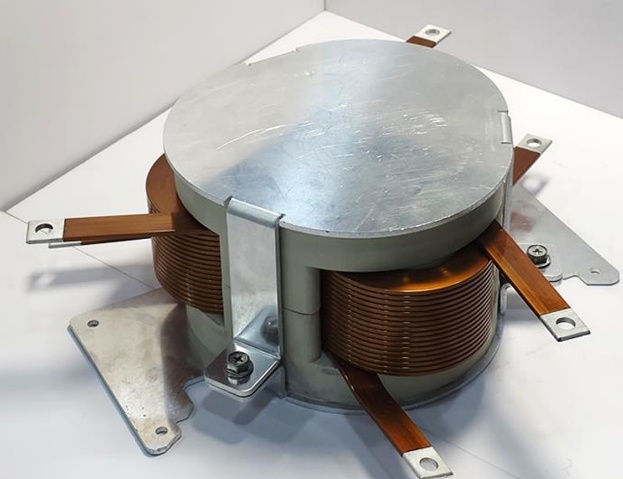

New - 3 Phase 100KW Filter

for Solar Inverters, UPS, EV Charging Station

Less Copper Less Losses Smaller Size OD 190 mm Height 101mm

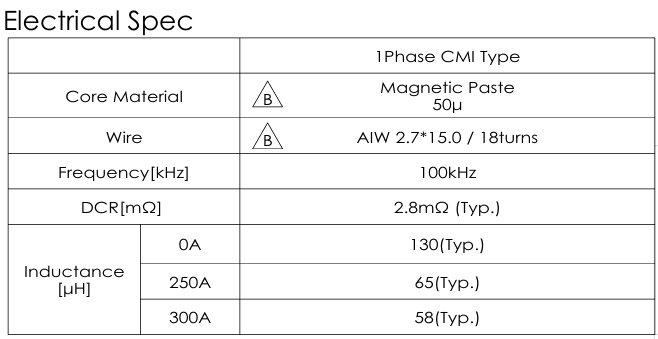

Each Phase Spec with Aluminium wire:

Integrated inductors combine several inductors into a single unit without requiring changes to the circuit, achieving significant reductions in both volume (35%) and weight (32%). Additionally, by minimizing the magnetic coupling coefficient compared to traditional methods, they maintain inductor balance under DC bias (DCB), facilitating easier power control.

Contact:

Wolfgang Schmidt
Mobile +49 (0) 171-6423-937
wschmidt@ajka-trafos.com

Gergő Váry Kovács
Mobil +36 30 125 8220
gvarykovacs@ajka-trafos.com

Website
ajka-trafos.com
