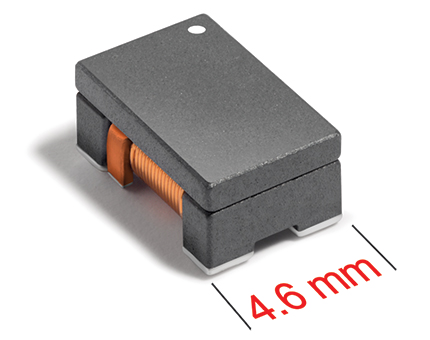

CSX7030 series High-isolation, Low-loss Current Sensing Transformers

Coilcraft CSX7030 Series high-isolation, low-loss current sense transformers are designed for high-performance power electronics and automotive applications. They feature a compact chip-style package with an ultra-low 3.3 mm profile.

With very low DCR, the series minimizes conduction losses and self-heating, making it ideal for high-current applications up to 20 A. A wide range of turns ratios from 1:50 to 1:200 provides excellent design flexibility, while bandwidth up to and beyond 1 MHz enables accurate, high-frequency current measurement in fast-switching systems such as DC-DC converters, motor drives, inverters, and power management circuits.

Free evaluation samples of the CSX7030 Series are available online at www.coilcraft.com.
